Y – Strainers
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- Mfg. Std.
- PN10, PN16
- 1/4" - 12"
- F - F : ASME B16.10
- Flanges: ASME B16.5
- Testing: API 598
Features & Benefits :

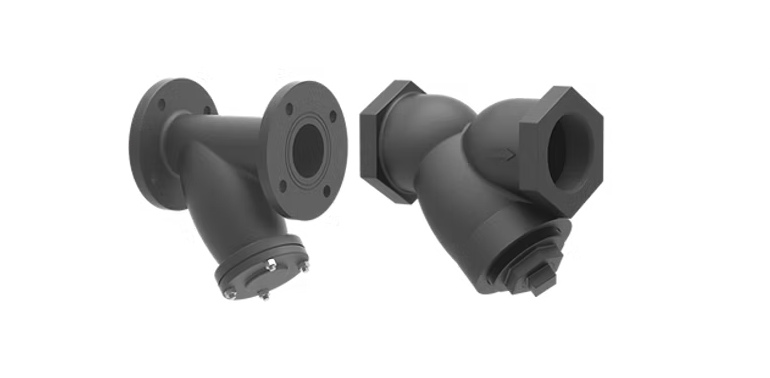

- We offer Y - Strainers in two design types: (i) Flanged End Type & (ii) Threaded End Type.
- They are particularly beneficial to filter / strain out particles from flowing liquid.
- They are useful anywhere clean liquid flow is required.
- We have increased the screen area of the mesh to achieve greater performance efficiency. Also, due the this minimal pressure loss is obtained when the fluid passes along the pipeline & through the strainer.
- We also provide a smooth interior surface which reduces wall friction losses and hence minimum pressure drop is achieved.
Material of Construction
| Body | CI, DI |
| Disc | DI, CF8, CF8M, Bronze |
| Stem | SS410, SS304, SS316 |
| Sleeve | EPDM, Nitrile, Silicon, Viton |
| Test | PN 10 | PN 16 |
|---|---|---|
| Max. Working Pressure in bar (psi) | 10 (145) | 16 (230) |
| Hydrostatic Shell in bar (psi) | 15 (220) | 24 (350) |
| Hydrostatic Seat in bar (psi) | 11 (160) | 17.6 (255) |
