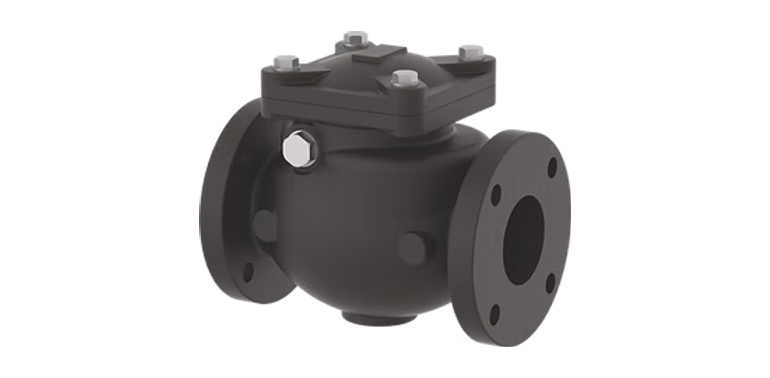

Swing Check Valve (Resilient – Seated)
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- AWWA C508
- PN10, PN16 #125
- 2" - 10"
- F - F : ASME B16.10
- Flanges: PN10, PN16
- Testing: API 598
Features & Benefits :
- Lubi Swing Check Valves are designed mainly to prevent any backflow in the pipeline.
- The valve automatically opens by the pressure of flowing liquid & it shuts down fully as the pressure reaches zero.
- No external power source required as these valves are guided by direction of fluid flow.
- They allow flow of fluid only in one direction.
- The pressure drop & turbulence created inside these valves are very low.
- These valves can be used horizontally as well as vertically.
- We provide CED Coating on the entire surface both inside as well as outside the body for better corrosion resistance & long lasting life.

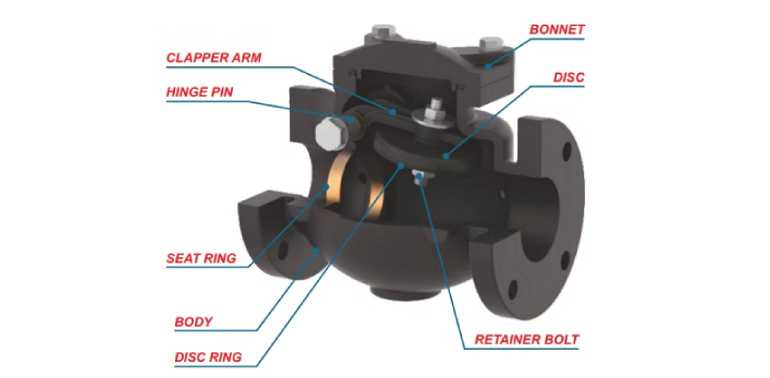

Material of Construction
| Body | CI, DI |
| Cover | CI, DI |
| Disc | DI, DI + EPDM Coated |
| Seat Ring | Bronze |
| Test | PN 10 | PN 16 |
|---|---|---|
| Max. Working Pressure in bar (psi) | 10 (145) | 16 (230) |
| Hydrostatic Shell in bar (psi) | 15 (220) | 24 (350) |
| Hydrostatic Seat in bar (psi) | 11 (160) | 17.6 (255) |
