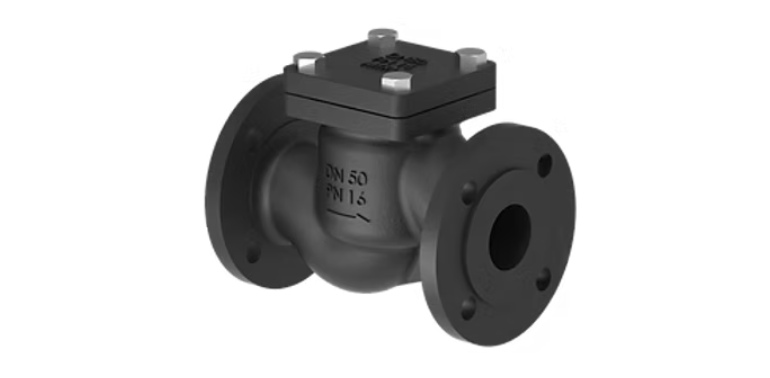

Lift Check Valve
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- BS 5153
- PN10, PN16
- 1" - 2"
- F - F : ASME B16.10
- Flanges: BS 4504
- Testing: API 598
Features & Benefits :
- Lubi Globe Steam Stop Valve are designed as per straight pattern design & are of bolted-bonnet type.
- The Seat as well as Disc is of Renewable Type.
- The valve is designed in such a way that the disc can be lifted high to avoid any obstruction in the path of flow of the fluid.
- The smooth & streamlined shape of the flow path inside the valve body & high lifting of the Plug results in very low pressure drop.
- These valves have very less pressure drop & high pressure recovery.
Material of Construction
| Body / Bonnet | Cast Iron |
| Stem | SS 410 |
| Plug | SS 410 |
| Seat | SS 410 |
| Test | PN 10 | PN 16 |
|---|---|---|
| Max. Working Pressure in bar (psi) | 10 (145) | 16 (230) |
| Hydrostatic Shell in bar (psi) | 15 (220) | 24 (350) |
| Hydrostatic Seat in bar (psi) | 11 (160) | 17.6 (255) |
