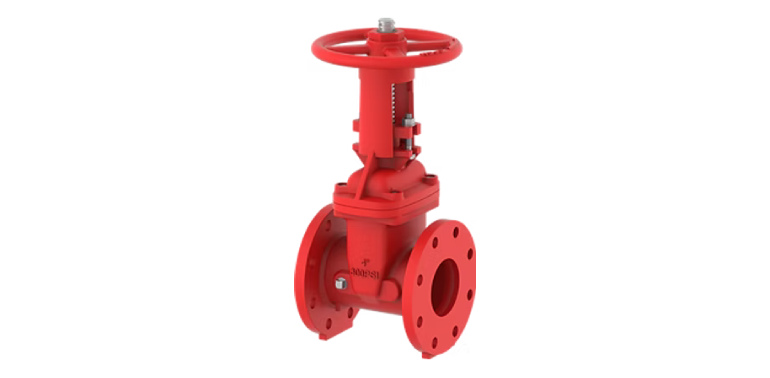

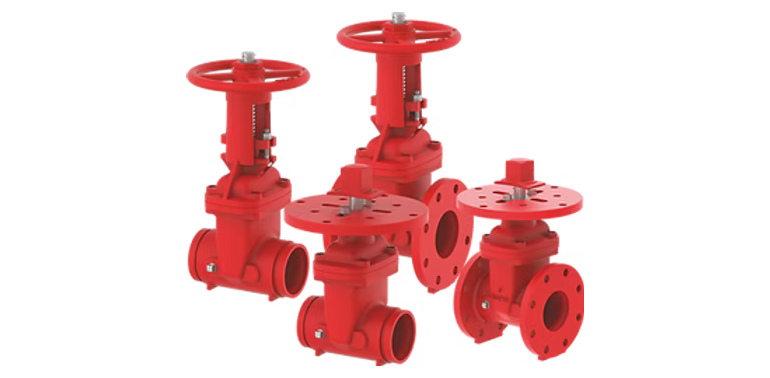

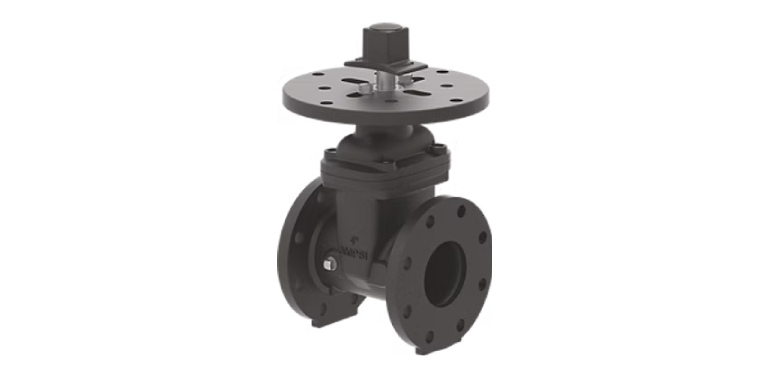

Gate Valve (Resilient – Seated)
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- AWWA C508
- PN10, PN16 #125
- 2" - 12"
- F - F : ASME B16.10
- Flanges: PN10, PN16
- Testing: API 598
Features & Benefits :
- Lubi Resilient Seated Gate Valves are designed in such a way that it does not create any obstruction to the flow field when the valve is in fully open condition. Hence, friction losses are very low.
- The EPDM Coated Cast Wedge provides a bubble tight seal to ensure no leakage when the valve is fully closed.
- We provide CED Coating on the entire surface both inside as well as outside the body for better corrosion resistance & long lasting life.

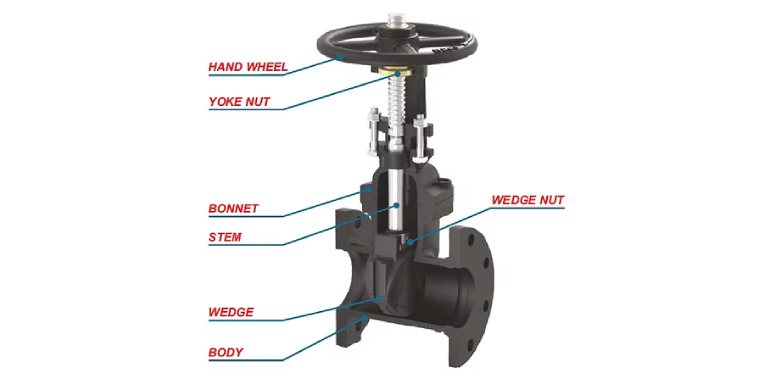

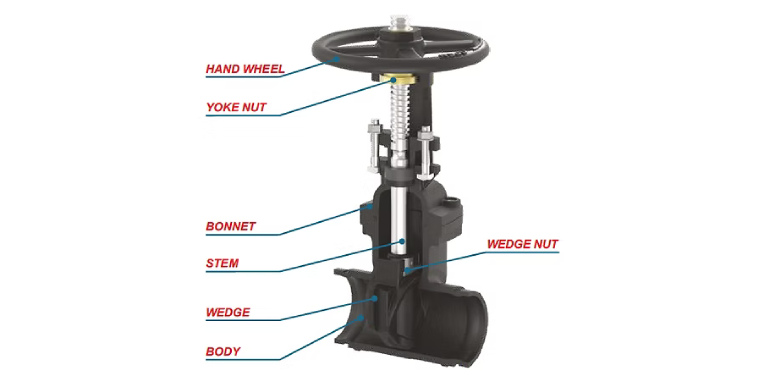

Material of Construction
| Body | CI, DI |
| Bonnet | DI, DI |
| Wedge | CI, DI + EPDM Coated |
| Stem | SS304 |
| Test | PN 10 | PN 16 |
|---|---|---|
| Max. Working Pressure in bar (psi) | 10 (145) | 16 (230) |
| Hydrostatic Shell in bar (psi) | 15 (220) | 24 (350) |
| Hydrostatic Seat in bar (psi) | 11 (160) | 17.6 (255) |
