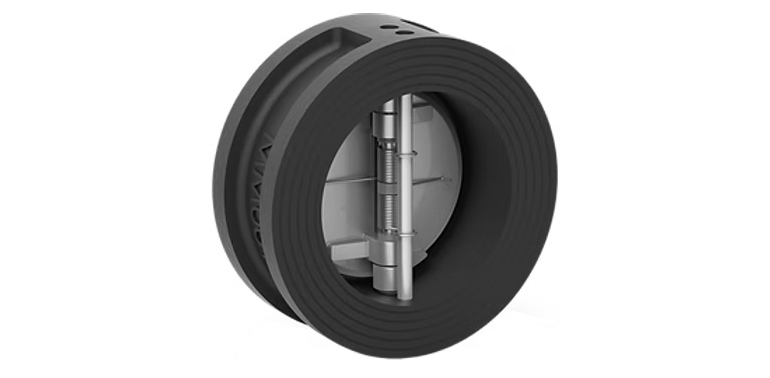

Dual Plate Check Valve
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- API 594
- PN10, PN16
- 2" - 12"
- F - F : -
- Flanges: -
- Testing: API 598
Features & Benefits :
- It is a Non-return Valve (NRV) which is much stronger, lighter and smaller in size compared to swing check valve.
- There are no restriction on direction of installation i.e. it can be installed horizontally, vertically & due to spring tension closure it also can be installed for upside down flow.
- Nitrile Rubber Seat lining improves & gives long lasting life.
- More compact and occupies less space due to Wafer-type design.
- Due to spring assisted closure, water hammer effect is almost non-existent.

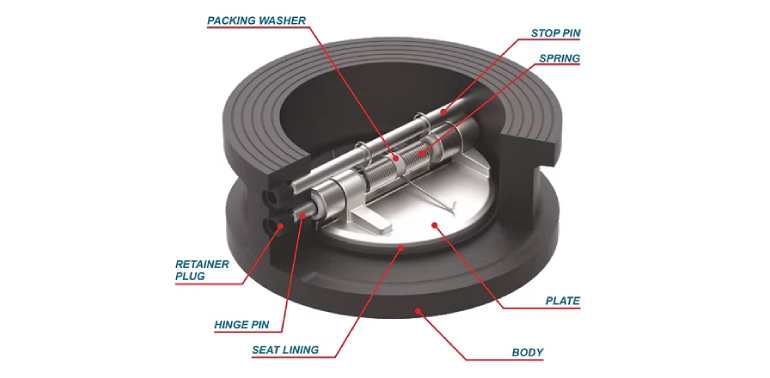

Material of Construction
| Body | CI, DI |
| Disc | DI, CF8, CF8M, Bronze |
| Stem | SS410, SS304, SS316 |
| Sleeve | EPDM, Nitrile, Silicon, Viton |
| Test | PN 10 | PN 16 |
|---|---|---|
| Max. Working Pressure in bar (psi) | 10 (145) | 16 (230) |
| Hydrostatic Shell in bar (psi) | 15 (220) | 24 (350) |
| Hydrostatic Seat in bar (psi) | 11 (160) | 17.6 (255) |
