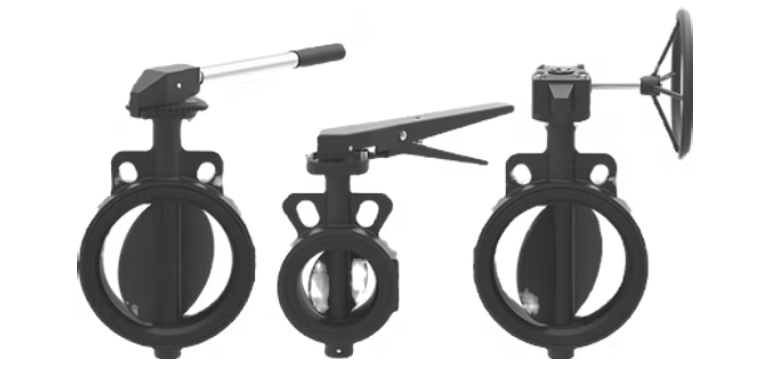

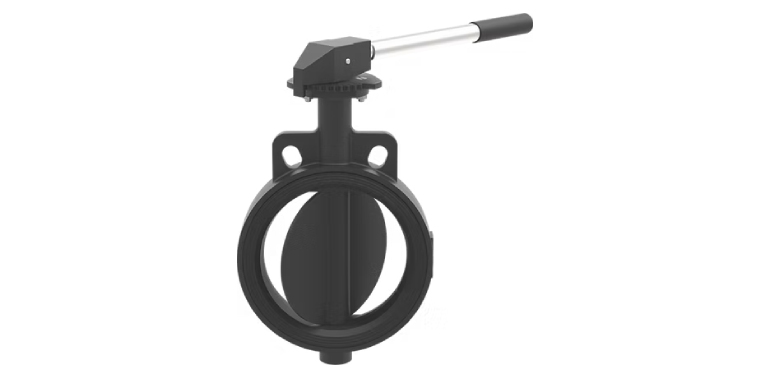

Butterfly Valve
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- EN 593 / API 609
- PN10, PN16, #150
- 1.5" - 12"
- F - F : API 609
- Flanges: ASME B16.5
- Testing: API 598
Features & Benefits :
- Butterfly Valves are easy to open & close.
- They are easy to install due to their compact design & less space requirements at the place of installation.
- We provide Tight Sealing due to close interference between disc & liner. We also provide a Triple Stem Seal which prevents any leakage and also any foreign particles from entering the valve.
- The flow control lever as well as the gear unit are designed such that very low torque is required for controlling the valve. Also, the hand lever is lockable in order to lock the position of disc in open or close positions.
- These valves have very less pressure drop & high pressure recovery.
- We provide all our valves with CED coating which gives better corrosion resistance & hence gives long lasting life.
Material of Construction
| Body | CI, DI |
| Disc | DI, CF8, CF8M, Bronze |
| Stem | SS410, SS304, SS316 |
| Sleeve | EPDM, Nitrile, Silicon, Viton |
| Test | PN 10 | PN 16 |
|---|---|---|
| Max. Working Pressure in bar (psi) | 10 (145) | 16 (230) |
| Hydrostatic Shell in bar (psi) | 15 (220) | 24 (350) |
| Hydrostatic Seat in bar (psi) | 11 (160) | 17.6 (255) |
