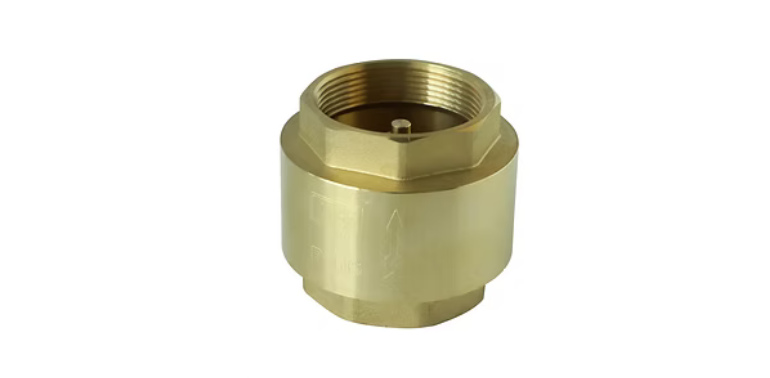

Brass NRV
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- Mfg. Std.
- PN 10, PN 16
- 1" - 2"
- F - F : Mfg. Std.
- Conn. : Screwed End
- Testing: API 598
Features & Benefits :
- Lubi Brass NRV's are of Screwed End Type.
- The Disc is Spring Loaded & hence suitable for both Horizontal & Vertical Applications.
- It permits flow in one direction & if flow is reversed it shuts off automatically.
- The Body / Bonnet is entirely made up of Forged Brass & is Nickel Plated inside as well as outside.
- It is suitable for Water & Oil applications.
Material of Construction
| Body/Bonnet | Forged Brass (Nickel Plated) |
| Ball | Forged Brass (Chrome Plated) |
| Spring | Steel |
| Test | PN 10 | PN 16 |
|---|---|---|
| Max. Working Pressure in bar (psi) | 10 (145) | 16 (230) |
| Hydrostatic Shell in bar (psi) | 15 (220) | 24 (350) |
| Hydrostatic Seat in bar (psi) | 11 (160) | 17.6 (255) |
