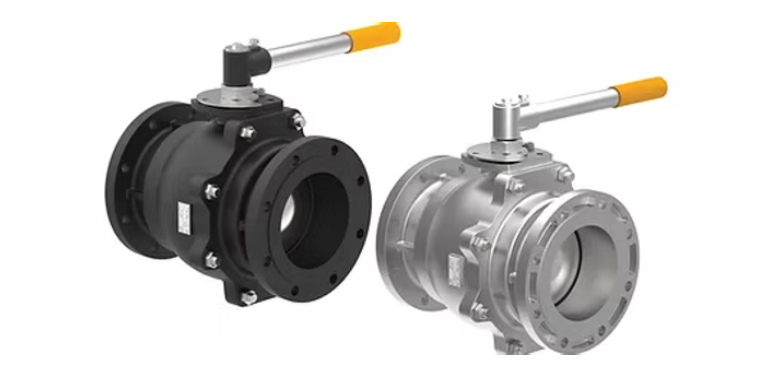

Ball Valve (2 Piece)
Lorem ipsum is simply free text used by copytyping refreshing. neque porro est qui dolorem ipsum quia quaed inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. aelltes port lacus quis enim var sed efficitur turpis gilla sed sit amet finibus eros.
- API 6D
- #150
- 1" - 8"
- F - F : ASME B16.34
- Flanges: ASME B16.5
- Testing: API 598
Features & Benefits :
- Lubi Ball Valves are suitable where simple open / shut application is needed.
- Our Ball Valves are designed to have minimal pressure drop & keep the flow rate high.
- They are easy to operate as from full opening to full closing only needs a 90° rotation.
- Valves are designed & manufactured with Blow out proof Stem feature which will prevent the stem from being pushed out due to the pressure inside the valve body.
- The stem is sealed with stem packing to prevent leakage past through the stem.
- Our Balls have smooth mirror finish for tight sealing & obtaining lower operating torques.
- We have designed our seats with fine slots which are used for relieving pressure and also helps to prevent seat damage during closed position at high temperature.
- All our valves have anti-static device feature available as standard .
- Our valves have a Fire -Safe feature, which means that when the PTFE seat melts, the ball tightly butts with the metal seat which controls any leakage.
Material of Construction
| Body | CI, DI, WCB, CF8, CF8M |
| Ball | CF8, CF8M |
| Seat | PTFE, R-PTFE |
| Stem | SS304, SS316 |
| Test | #150 |
|---|---|
| Hydrostatic Shell Test in bar (psi) | 32 (450) |
| Hydrostatic Seat Test in bar (psi) | 22 (325) |
| Hydrostatic Back-Seat Test in bar (psi) | |
| Max. Working Pressure in bar (psi) | 20 (290) |
